Zenmuse L3



Discover how DJI’s next-generation high-accuracy aerial LiDAR system: Zenmuse L3 , combines long-range 1535 nm LiDAR, dual 100 MP mapping cameras, and a high-precision POS system to deliver unprecedented efficiency and detail for large-scale geospatial missions.



DJI has taken a major step forward in LiDAR innovation with the launch of Zenmuse L3, a system designed to make high-precision aerial mapping faster, easier, and more accessible for professionals across industries.

Built upon years of experience in aerial imaging and surveying, the L3 represents a breakthrough in how efficiency and accuracy can coexist in a single payload. From large-scale topographic surveys to power-line inspections and infrastructure modeling, it gives mapping specialists, engineers, and environmental researchers a tool that simplifies complex workflows while delivering survey-grade precision.

Zenmuse L3 delivers significant improvements in both point cloud and RGB accuracy, while raising efficiency to new heights. When paired with DJI Matrice 400, a single flight can cover up to 10 km², enabling up to 100 km² of high-accuracy mapping per day.

By seamlessly connecting with DJI Terra, Modify, and FlightHub 2, Zenmuse L3 brings together planning, data capture, processing, and visualization: forming an end-to-end ecosystem that redefines what professionals can expect from an aerial LiDAR system.

Pushing LiDAR Range and Clarity to New Limits

Long Range, Wide Coverage

Zenmuse L3 achieves a maximum detection range of 950 m at a pulse rate of 100 kHz, tested under 100 klx ambient light and on objects with 10% reflectivity. The adjustable pulse rate allows for flexible power output and optimal adaptation to different operational scenarios.

Zenmuse L3 laser reach extends up to 950m

Small Spot, High Energy

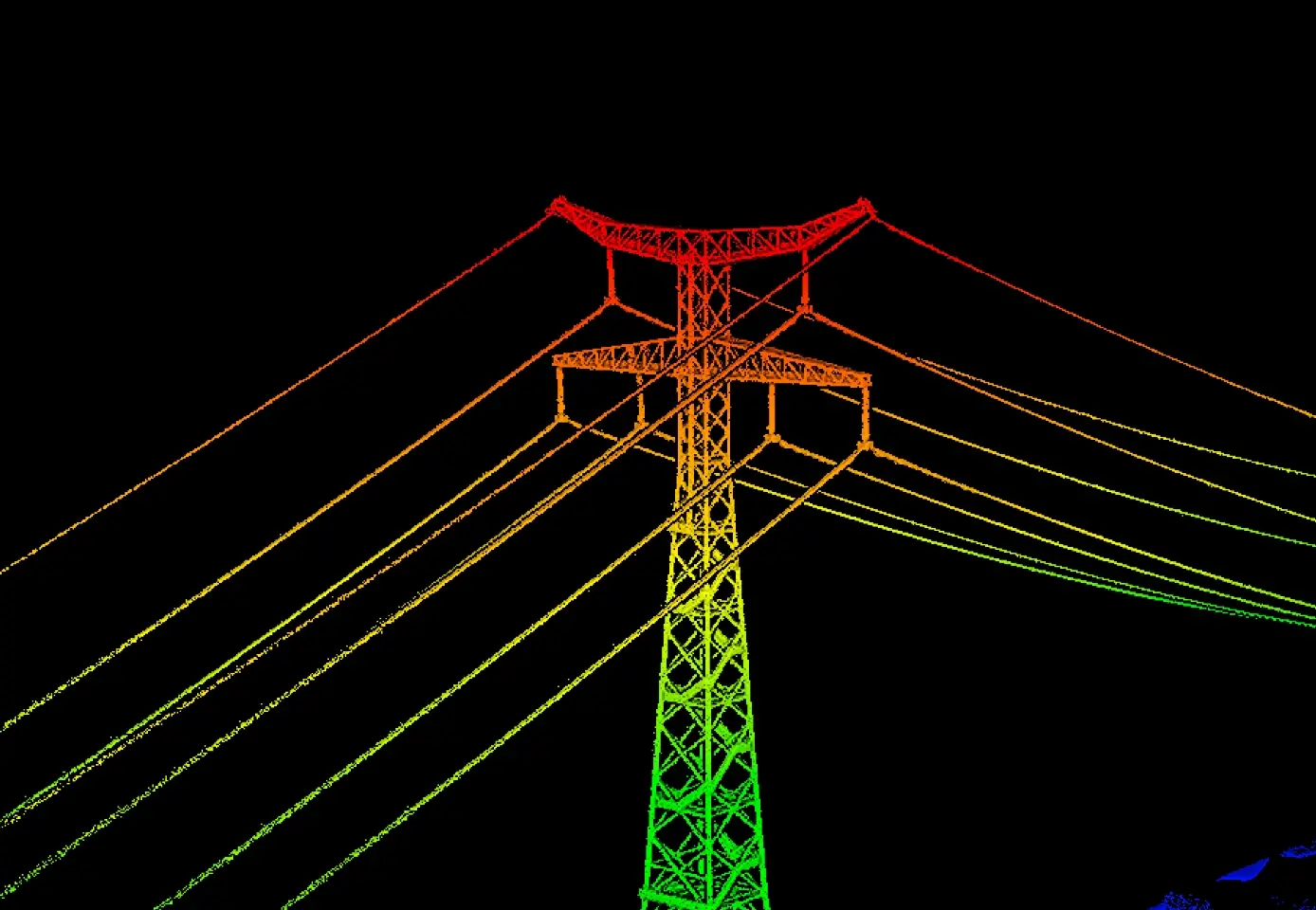

With a laser beam divergence of just 0.25 mrad (1/e²), the spot size at the same range is about one-fifth that of Zenmuse L2, enabling detection of smaller objects such as power lines and branches.

Smaller laser spot size and higher energy for more accurate capture

Higher energy density results in stronger penetration capability, significantly increasing ground point density beneath vegetation and enabling high-accuracy reconstruction of complex terrains and structures.

Adjustable Pulse Rate, Returns, and Scanning Modes

Adaptability for the task at hand is another highlight of the Zenmuse L3. With a maximum laser pulse emission frequency of 2 million points per second and support for up to 16 returns, the L3 is suited for diverse mapping scenarios.

Point cloud density and penetration capability can be adjusted to fit needs from high-accuracy mapping to complex environments, resulting in highly accurate spatial reconstruction.

Zenmuse L3 offers adjustable scanning modes, pulse rate, and returns.

Furthermore, the L3 offers Linear, Star-Shaped, and Non-Repetitive scanning modes for different operational scenarios:

 Linear: Achieves more consistent point cloud distribution, ideal for high-accuracy terrain mapping.

 Star-Shaped: Balances accuracy with multiple scan angles and penetration capability, well-suited for forests or dense urban environments.

 Non-Repetitive: Provides multiple scan angles and broader coverage, optimized for power line inspections and other complex structural surveys.



Zenmuse L3 Scanning Patterns

Clearer Reconstructions and Mapping Efficiency with Dual RGB Cameras

Dual 100MP RGB Mapping Cameras

Precision mapping requires not only distance but detail — and the Zenmuse L3 delivers both.

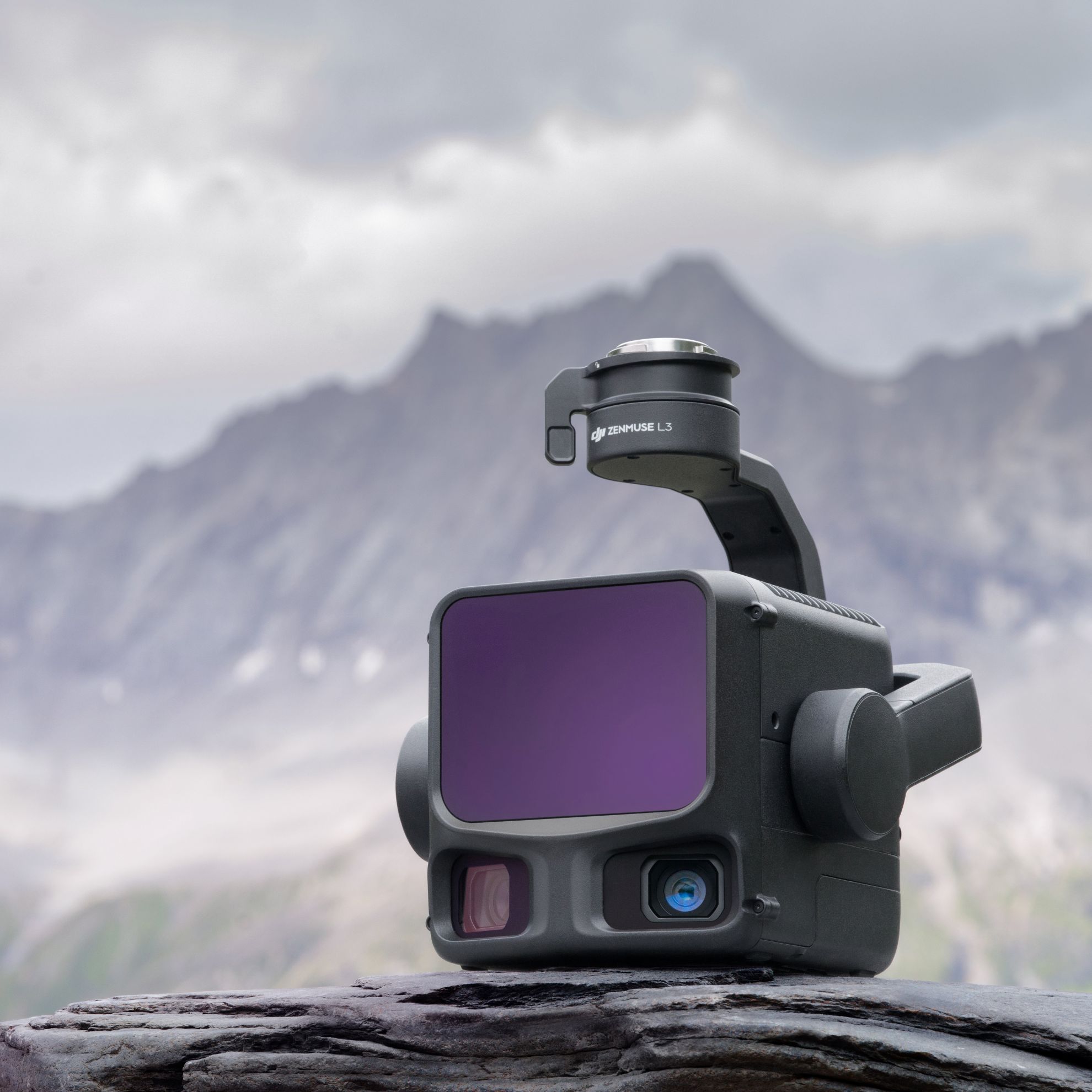

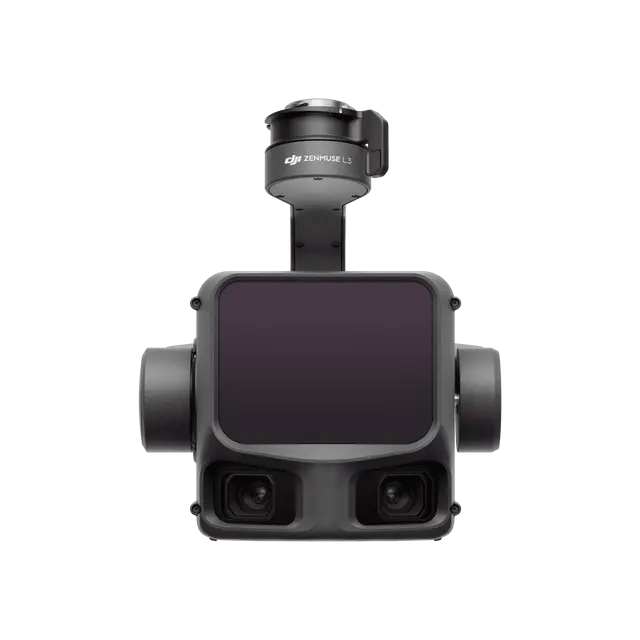

Equipped with dual 100MP 4/3 CMOS RGB sensors and a mechanical shutter, it captures high-resolution imagery with remarkable clarity and consistency. These cameras not only enable the generation of true-color point clouds for more realistic visualization but also significantly improve efficiency when capturing photogrammetry data, reducing flight time while maintaining exceptional accuracy.

Zenmuse L3 Dual 100MP RGB Cameras

107° Ultra-Wide FOV

Complementing the LiDAR’s long-range capabilities, the dual cameras provide an expansive 107° horizontal field of view (FOV). This ultra-wide perspective allows every flight to cover a broader area, reducing mission time while maintaining data precision. Even with just a 20% LiDAR side overlap, users can capture data for both digital orthophoto maps (DOM) and digital elevation models (DEM) in a single flight — streamlining workflows and maximizing efficiency for large-scale mapping projects.

Zenmuse L3 Improved FOV

Elevated Performance: Accuracy Meets Efficiency

With the Zenmuse L3, DJI has refined every link in the data chain: from positioning and ranging to image capture to ensure that each dataset meets survey-grade standards. Equipped with an enhanced POS system that achieves a heading and pitch accuracy of 0.02° and 0.01°respectively (post-processed, 1σ), along with DJI's self-developed LiDAR with ranging repeatability of 5 mm at 150 m (1σ) and microsecond-level time synchronization, the Zenmuse L3 takes long-range aerial LiDAR performance to the next level.

DJI's Zenmuse Enhanced POS System

LiDAR Data Accuracy

Zenmuse L3 delivers vertical accuracy better than 3 cm at 120 m altitude, better than 5 cm at 300 m, and better than 10 cm at 500 m, easily supporting mapping projects at 1:500, 1:1000, and 1:2000 scales. The resulting point cloud thickness is only half that of the Zenmuse L2, enabling advanced analysis and high-accuracy applications even in complex environments.

     Zenmuse L3 Point Cloud Accuracy

RGB Data Accuracy

Thanks to its dual 100 MP RGB mapping cameras, the Zenmuse L3 achieves a ground sample distance (GSD) of 3 cm even at a 300 m flight altitude.

Real-time position synchronization allows for operation without ground control points (GCPs), producing highly accurate, visually rich imagery for precision mapping.

Zenmuse L3 Point Cloud Accuracy

High Ground Point Density

In challenging environments such as dense vegetation or uneven terrain, maintaining ground visibility is critical for accurate mapping. Building on its optimized laser design, the Zenmuse L3 delivers superior penetration performance, capturing more ground points with greater completeness.

This significantly enhances the accuracy and integrity of terrain data, ensuring a reliable foundation for precise modeling and surface reconstruction.

High Density means clearer ground data

High Efficiency: Up to 100 km² per Day

Efficiency defines productivity in aerial mapping, and the Zenmuse L3 is designed to deliver both.

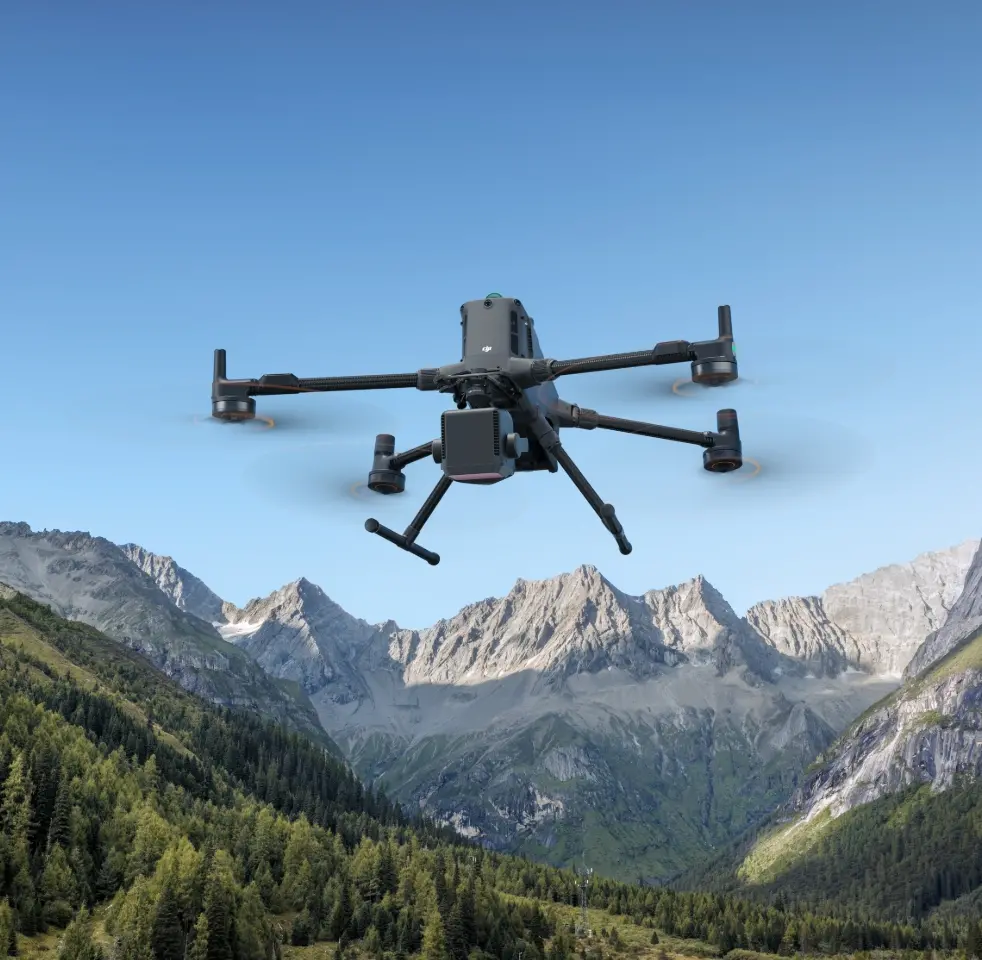

When mounted on the DJI Matrice 400, it achieves outstanding coverage efficiency at a flight altitude of 300 meters, a single mission can map up to 10 km², enabling as much as 100 km² of daily coverage.

At a lower altitude of 120 meters and a flight speed of 15 m/s, a single mission can still cover up to 4 km² (around 1,000 acres), resulting in a mapping efficiency that is at least 54% higher compared with the Zenmuse L2. This flexibility allows operators to maintain high productivity across different project scales and terrain types.

Zenmuse L3 and M400 deliver higher efficiency and mapping coverage

Optimized End-to-End Workflow: From Capture to Application

Data Capture Versatility and Efficiency

Beyond capturing LiDAR and RGB data simultaneously, Zenmuse L3 maximizes operational efficiency by allowing multiple mapping deliverables to be produced from a single flight. This integration streamlines workflows reducing the need for repeated missions and post-processing while ensuring consistent alignment between LiDAR and RGB datasets.

From digital elevation and orthophoto maps to 3D reconstructions, every dataset is captured with survey-grade precision, giving professionals faster access to ready-to-use results for analysis and application.

Zenmuse L3 Deliverables include Mesh, DEM, DOM, and Point Cloud

DJI Enterprise's Integrated Ecosystem

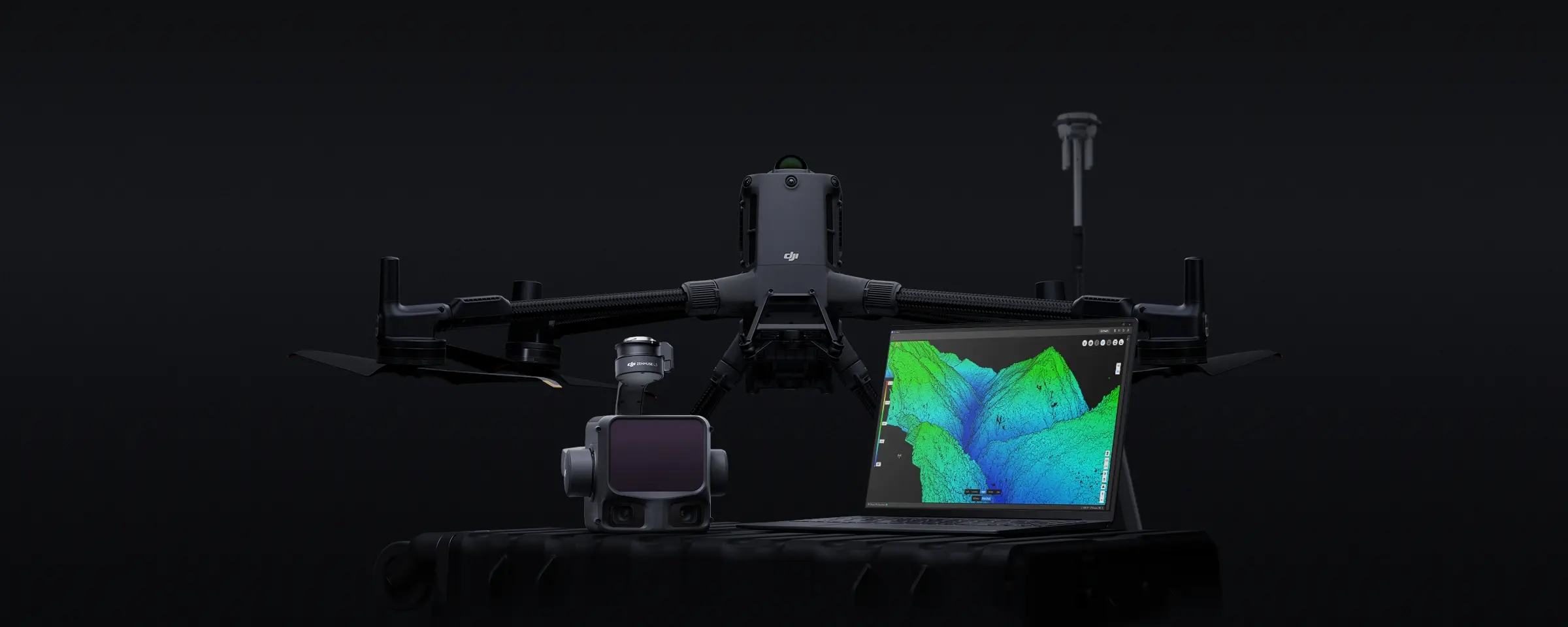

Seamless integration lies at the core of Zenmuse L3. Within DJI’s ecosystem, it forms a complete end-to-end mapping workflow that connects data acquisition, processing, and application into one unified chain. This integrated approach enables professionals to plan missions, capture data, process results, and generate outputs within a single, cohesive platform—simplifying operations while improving overall efficiency.

Compared with traditional multi-platform setups, the DJI ecosystem eliminates compatibility barriers and reduces manual workload. From DJI Pilot 2 for mission planning, to DJI Terra and Modify for data processing and visualization, every step is tightly connected.

 The result is a streamlined, faster, and more intuitive workflow that empowers users to complete complex mapping tasks with greater precision and confidence.

Get Started with DJI Zenmuse L3

The DJI Zenmuse L3 represents a major leap forward in aerial LiDAR innovation — combining 1535 nm long-range laser technology, dual 100 MP RGB mapping cameras, and a high-precision POS system into one compact, integrated solution. From long-range topographic surveys to detailed infrastructure modeling, L3 empowers professionals to capture, process, and analyze geospatial data with unmatched accuracy and efficiency.

By seamlessly integrating with DJI Terra, DJI Modify, and FlightHub 2, Zenmuse L3 completes a truly end-to-end workflow that covers every stage — from flight planning to data visualization. Whether deployed for forestry management, power line inspection, or large-scale terrain mapping, L3 delivers the precision and reliability required for mission-critical operations.

Explore how DJI’s most advanced LiDAR system helps you see through, far, and true — and experience a new level of clarity in aerial mapping.
